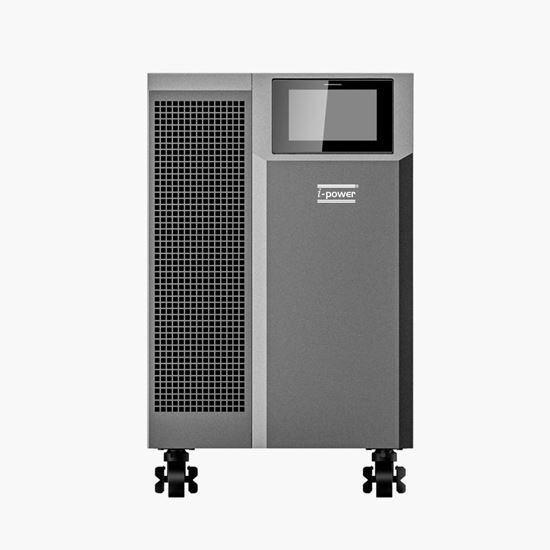

Picture of T-4003 TL 3-3 (1PF) Built-in & Long Back-up series (20-80KVA)

T-4003 TL 3-3 (1PF) Built-in & Long Back-up series (20-80KVA)

Call For Pricing

The i-power T-4003 series is a true online double-conversion, high frequency, transformer-less three phase UPS (three-in and three-out) that provides your critical equipment with reliable and stable pure sine wave power. It features high efficiency, high performance and an output power factor of 1, with overall efficiency up to 96% in online mode and above 99% in ECO mode.

With perfect power source protection solutions, the T-4003 series effectively addresses multiple power source problems such as power outage, high-voltage AC and low-voltage AC, voltage sag, damped oscillation, high-voltage impulse, voltage surge, harmonic distortion, clutter interference and frequency variation. It is widely applied for computers, communications devices and other controlling devices, in data centers, manufacturing facilities, telecommunication, commercial buildings, transportation, financial services, security and surveillance and healthcare. Optional accessories are available to cope with inrush load situations / feed-back circuit protections in complicated electrical environments.



Product Highlights:

  • Three-step IGBT PWM Control Technology and Advanced DSP Digital Control Technology
  • ECO mode efficiency up to 99%
  • Wide input voltage range and wide input frequency compatibility 42-72Hz
  • Higher density reduces up to 50% of the footprint
  • Predictable component lifetime enhances system reliability
  • Optimized Battery Management (OBM) Technology
  • Robust design with dust-proof filter & PCBA conformal coating, excellent protection to harsh environment
  • Up to 4 EBMs connections for extended backup time
  • Dual and single feed input options
  • Modular fan and battery design with front-service battery packs
  • Service reminder for preventive maintenance
  • Optimized parallel technology (no master-slave), up to 4 units / 320kW
  • 5-inch color touchable LCD HMI with up to 10 languages
  • Various communication options
  • Pre-install battery and without pre-install battery options

(Download Datasheet)

Model (Long Back-up) OH3020T14400S OH3030T14400S OH3040T14400S OH3060T14400S OH3080T14400S
Model (Standard) OH3020T14000B OH3030T14000B OH3040T14000B OH3060T14000B OH3080T14000B
Capacity 20KVA/20KW 30KVA/30KW 40KVA/40KW 60KVA/60KW 80KVA/80KW
Technical Specifications
UPS Structure Online Double Conversion
Topology High Frequency Pure Sine Wave PWM IGBT Based, Transformer Less
Classification (VFI-SS-111)
Degree of Protection IP20
Overall Efficiency Up to 96% in online mode; >99% in ECO mode
Cable Entry Bottom Rear
Conformal Coating PCBA conformal coating
Parallel Redundancy Parallel redundancy up to 4 units (up to 320kW)
ECO Mode Available
Protections Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low
Colour Pantone Black C and Pantone 877C
Safety IEC/EN 62040-1
EMC IEC/EN 62040-2
Performance IEC/EN 62040-3
Electromagnetic Compatibility IEC/EN 62040-2 C3
Certification CE & ISO
Rectifier Specification
AC Power Three-phase, 4-wire + PE
Rated Input Voltage 230/400Vac nominal (220/380, 240/415 Selectable)
Input Voltage Range (-50% ~ +20%), depends on load percentage
Operating Frequency / Tolerance 50 or 60Hz; Tolerance 42-72Hz
Input Current Distortion <3% THDi (Linear load condition at rated input current)
Input Power Factor 0.99PF at 100% load
Inrush Current ≤120% of rated current for ≤2 cycles
Number of Input Phases 3 phase + Neutral + PE (3 phase)
Rated Rectifier Input Current (rms @ 400V) 31A 45A 61A 91A 122A
Max Rectifier Input Current (rms @ 400V) 36A 54A 72A 108A 144A
Output Specification
Rated Output Voltage 230/400 Vac, Three Phase, (220/380, 240/415 selectable)
Output Voltage Variation 1% Balanced load, 2% Unbalanced load
Output Power Factor 1PF
Crest Factor 2.5:1
Rated Output Frequency 50 Hz (default) or 60 Hz
Output Frequency Variation Selectable from 1Hz to 4Hz, with slew rate 0.5Hz/sec (default), 0.1Hz on battery
Output Frequency Maximum of 2.5 degrees
Total Voltage Distortion <2% with linear load, 5% with non-linear load defined according to EN62040-3
Rated Output Current (rms @ 400V) 29A 44A 58A 87A 116A
Short Circuit Capability (200ms) 73A 108A 145A 217A 290A
Overload Capacity Without Bypass 102–110% load 60 mins,
111–125% load 10mins,
126–150% load 1min,
>150% load 150msec at 40°C
Bypass Specification
Automatic Bypass Static bypass switch, continuously rated*, no break transfer
Separate Bypass Input Feed Standard (single feed cable links supplied for field fitting)
Bypass Frequency Range 4Hz (default), selectable from 1Hz to 4Hz
Bypass Input Current (rms @ 400V) 30A/34A 44A/51A 59A/68A 89A/102A 118A/136A
Battery Specification
Battery Type VRLA, Lithium-ion, Nicad
Battery - Long Run Models 32/34/36/38/40/42/44 blocks VRLA battery, Operating VDC: 320-607VDC, Default 432VDC
Battery - Standard Models 2*40*9Ah max 2*40*9Ah max 2*40*9Ah max 4*40*9Ah max 4*40*9Ah max
Battery Default (Standard Models, 4 mins backup @100% load) 1*40*9Ah 2*32*9Ah 2*40*9Ah 3*40*9Ah 4*40*9Ah
Battery Option 2*40 max 2*40 max 2*40 max 4*40 max 4*40 max
Battery Cut-Off Voltage VRLA: 1.67V/Cell (Positive and negative battery voltages are independent systems, and the battery cut-off voltage depends on the minimum of the positive and negative voltages.)
Charging Current Long Run Model 20A. Max 30A. Max 40A. Max 60A. Max 80A. Max
Charging Current with Batteries 1.6A default 1.6A default 1.6A default 3.2A default 3.2A default
Battery Recharge Profile Optimized Battery Management (OBM®) = 90% resting, 10% floating/charging (typical)
Communication Specification
Display 5” Touchscreen HMI, 1x LEDs for notice and alarm
Standard Communication Ports 2x Intelligent-Slot, 1x Emergency Power Off input (default NC, optional NO), 3x Building Alarm inputs, 1x RS-232 (for service), 1x USB (for service)
Optional Communication Cards NMC card, CMC G2 card, Relay card, EMP
Environmental
Ambient Storage Temperature Range of -25 to +70°C in the protective package
Ambient Service Temperature 0 to +40°C
Maximum Service Altitude 1500m at 40°C without de-rating
Maximum 2000m with 1% de-rating per each additional 100m above 1000m
Relative Humidity 5 to 95%, Non-condensing
Elevation <1500M, without derated
Audible Noise <=65dBA at 1m @ 75% Load (ISO7779)
Physical Characteristics
Dimensions Long Run Model W×D×H (mm) 330×699×521 330×773×972
Dimensions Standard Models W×D×H (mm) 500×859×887 500×846×1500
Weight (kg) Long Run Models 48 48 48 96 96
Weight (kg) Standard Models 134 136 139 239 242
Note: As part of our ongoing commitment to product improvement and innovation, specifications and features may be revised or updated without prior notice to enhance performance and reliability.
